Swi-TEC running boards
Swi-TEC’s gangways allow you to board safely. Available in three models and in different length sizes. The right gangway for every ship!
- Model Mini – length 2 meters – no railing
- Model Light – length 2 or 2.5 meters – equipped with railing
- Model Classic – length 3 meters – equipped with railing
Specifications Swi-TEC running board mini
This gangway is made of a light, solid, seawater-resistant aluminum and stainless steel. So perfect for onboarding!
- Weight 8 kg
- Available in two -or three-piece
- Supplied with one cover pot as standard
- Pin diameter 20 mm
| ART. NO. | share | Material | Length | width | weight | MAX weight | |
|---|---|---|---|---|---|---|---|
| 8070 | New-Mini | 2 | Aluminum | 2 m | 28 cm | 8 kg | approximately 120 kg |

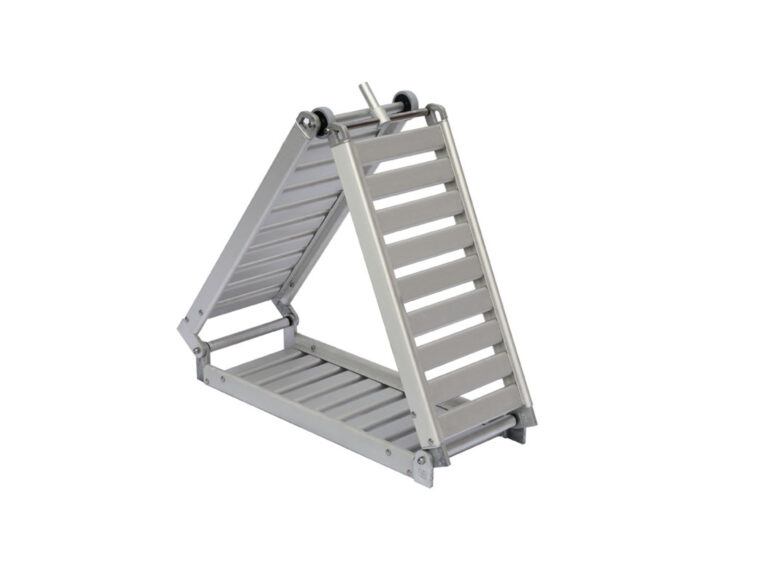

| 8072 | New-Mini | 3 | Aluminum | 2 m | 28 cm | 8 kg | approximately 120 kg |

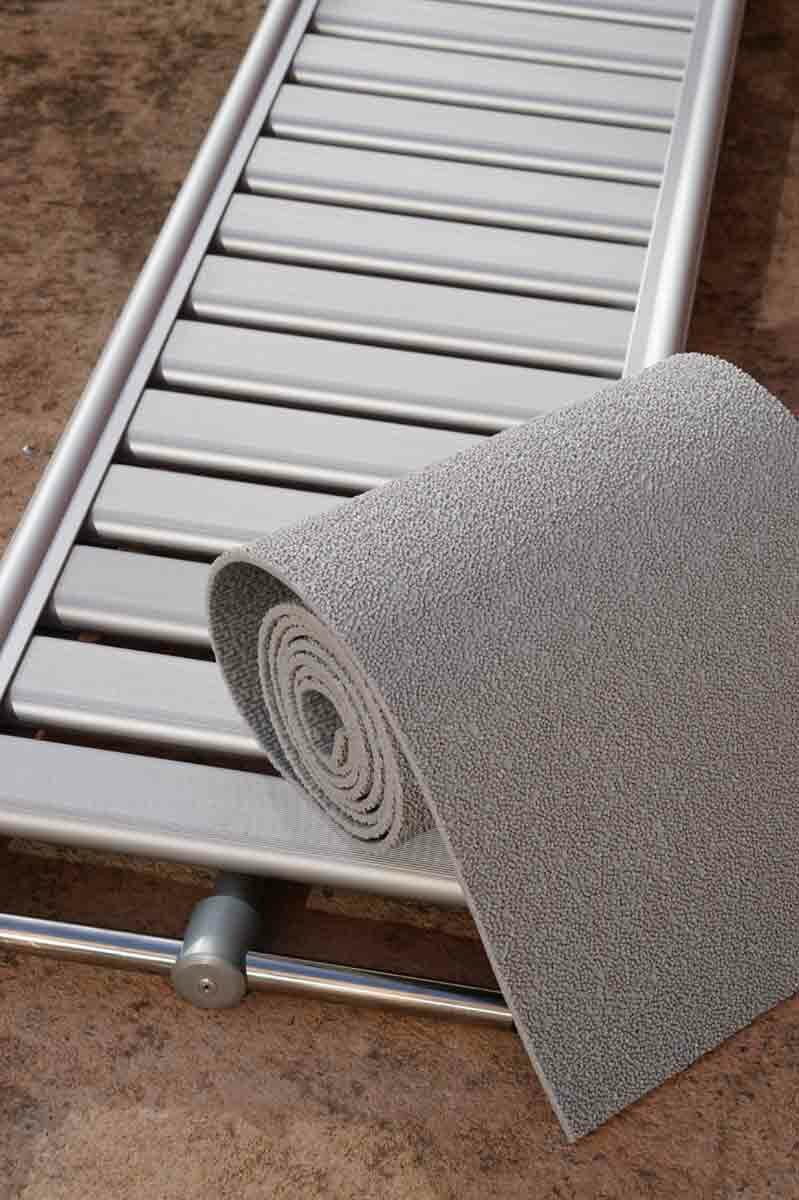

The Swi-TEC running board mini features a non-slip profile. However, we recommend ordering a non-slip mat with it for extra comfort. For example, when pets, elderly people or children are on board.
The Swi-TEC gangway mini is not equipped with a railing
. For that, choose the Swi-TEC light gangway or the Swi TEC classic gangway.

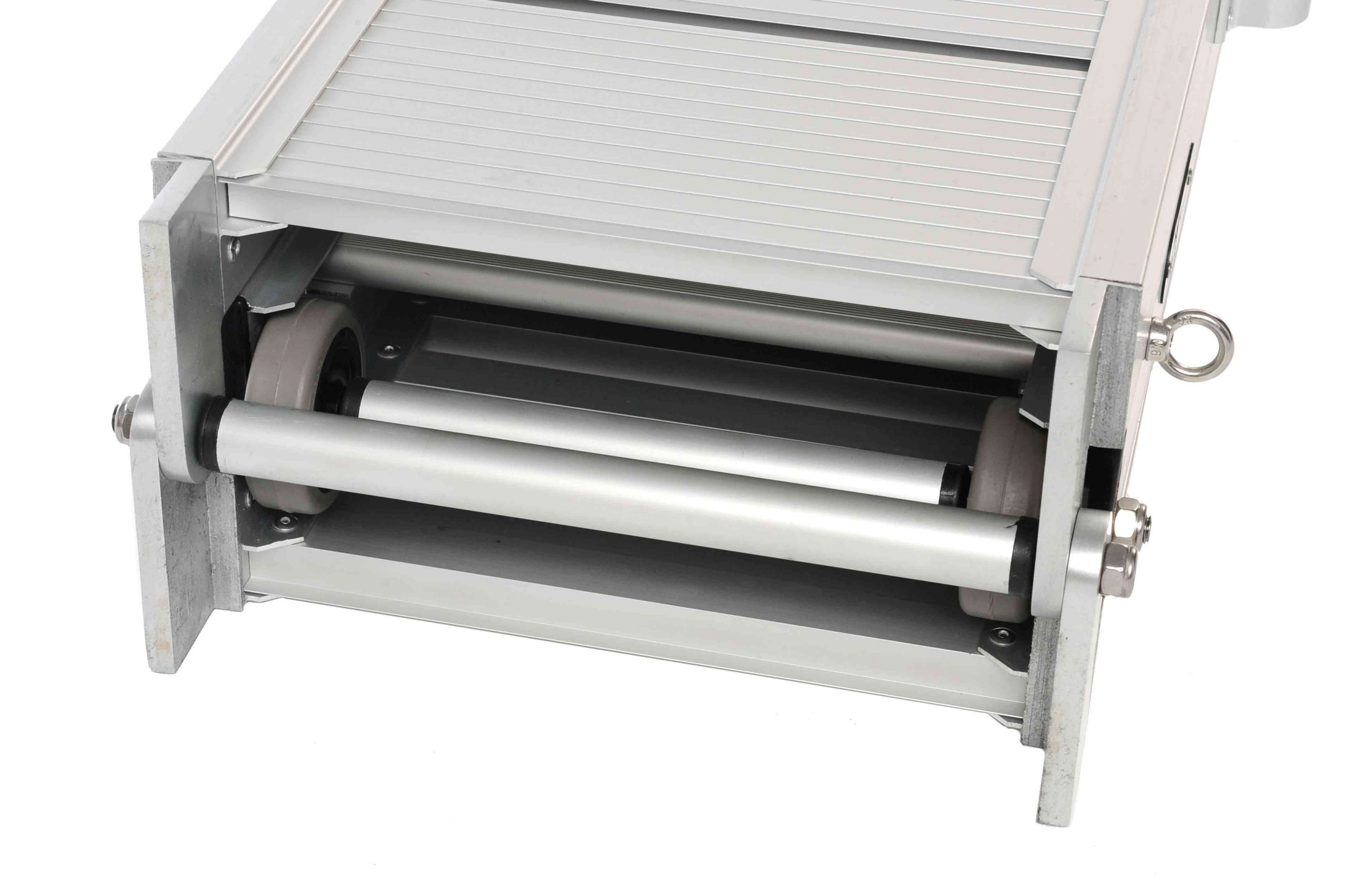

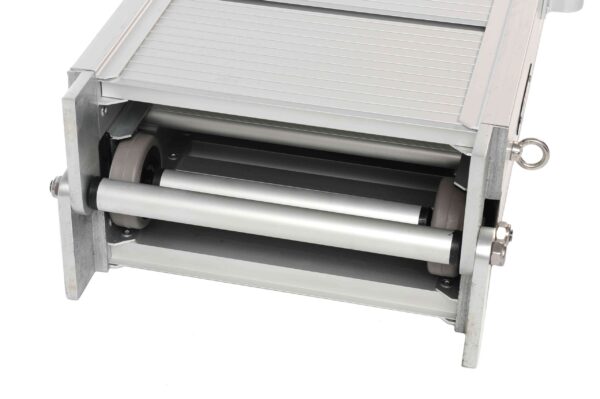

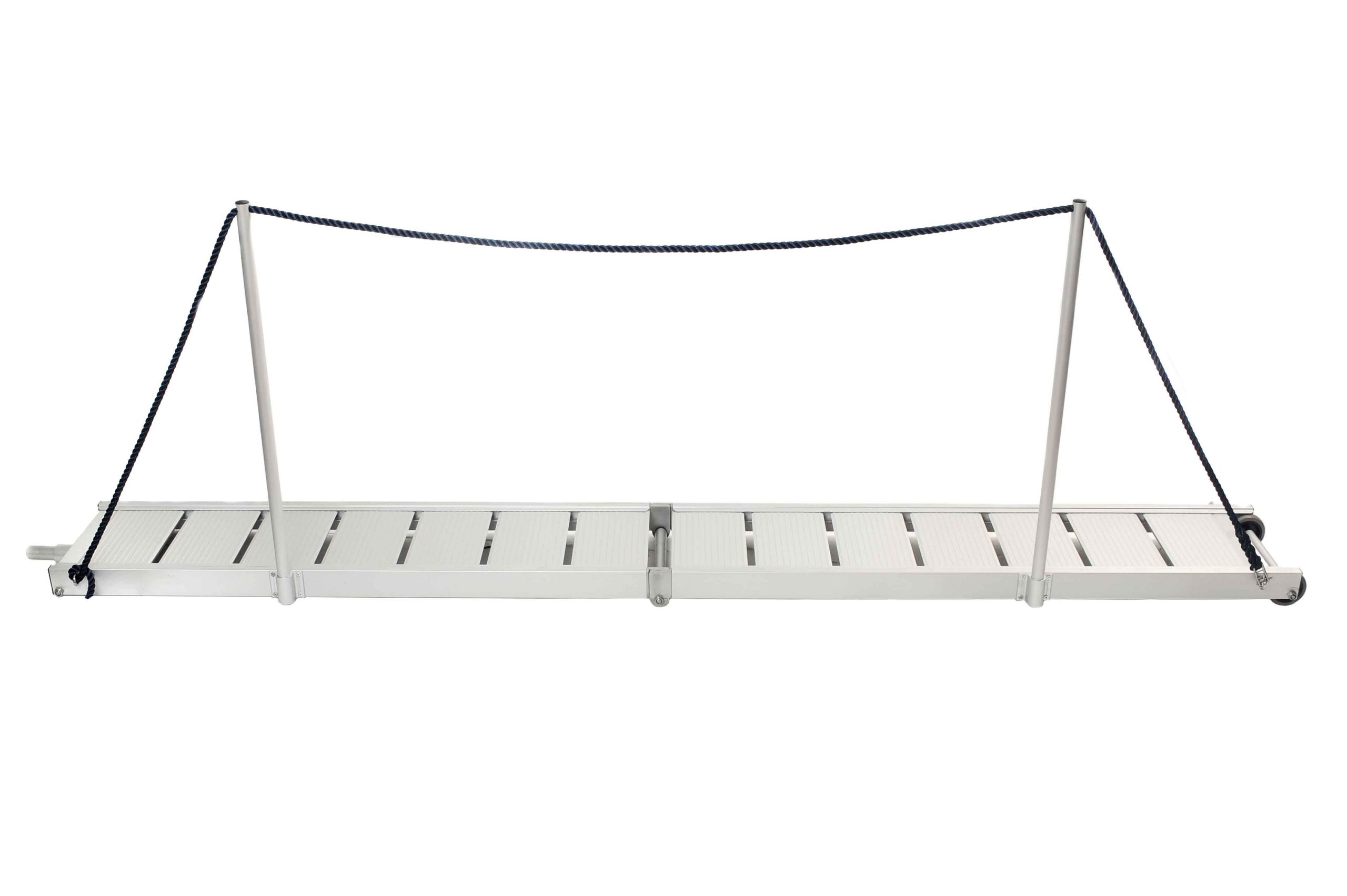

Specifications Swi-TEC running board light
The Swi-TEC gangway light is made of seawater-resistant stainless steel and aluminum.
- Depending on the type, this running board weighs between 11 and 15.5 kg.
- Available in 2 and 2.5 meter lengths
- Two -or three piece
- Supplied with one cover pot as standard
- Pin diameter 30 mm
| ART. NO. | share | Material | Length | width | weight | MAX weight | |
|---|---|---|---|---|---|---|---|
| 8045 | Light | 2 | Aluminum | 2 m | 32 cm | 11 kg | approximately 120 kg |
| 8046 | Light | 2 | Aluminum | 2,5 m | 32 cm | 13 kg | approximately 120 kg |
| 8051 | Light | 2 | Teak-Aluminum | 2 m | 32 cm | 13 kg | approximately 120 kg |
| 8052 | Light | 2 | Teak-Aluminum | 2,5 m | 32 cm | 15 kg | approximately 120 kg |
| 8061 | Light | 3 | Aluminum | 2 m | 32 cm | 12.5 kg | approximately 120 kg |
| 8062 | Light | 3 | Aluminum | 2,5 m | 32 cm | 14.5 kg | approximately 120 kg |

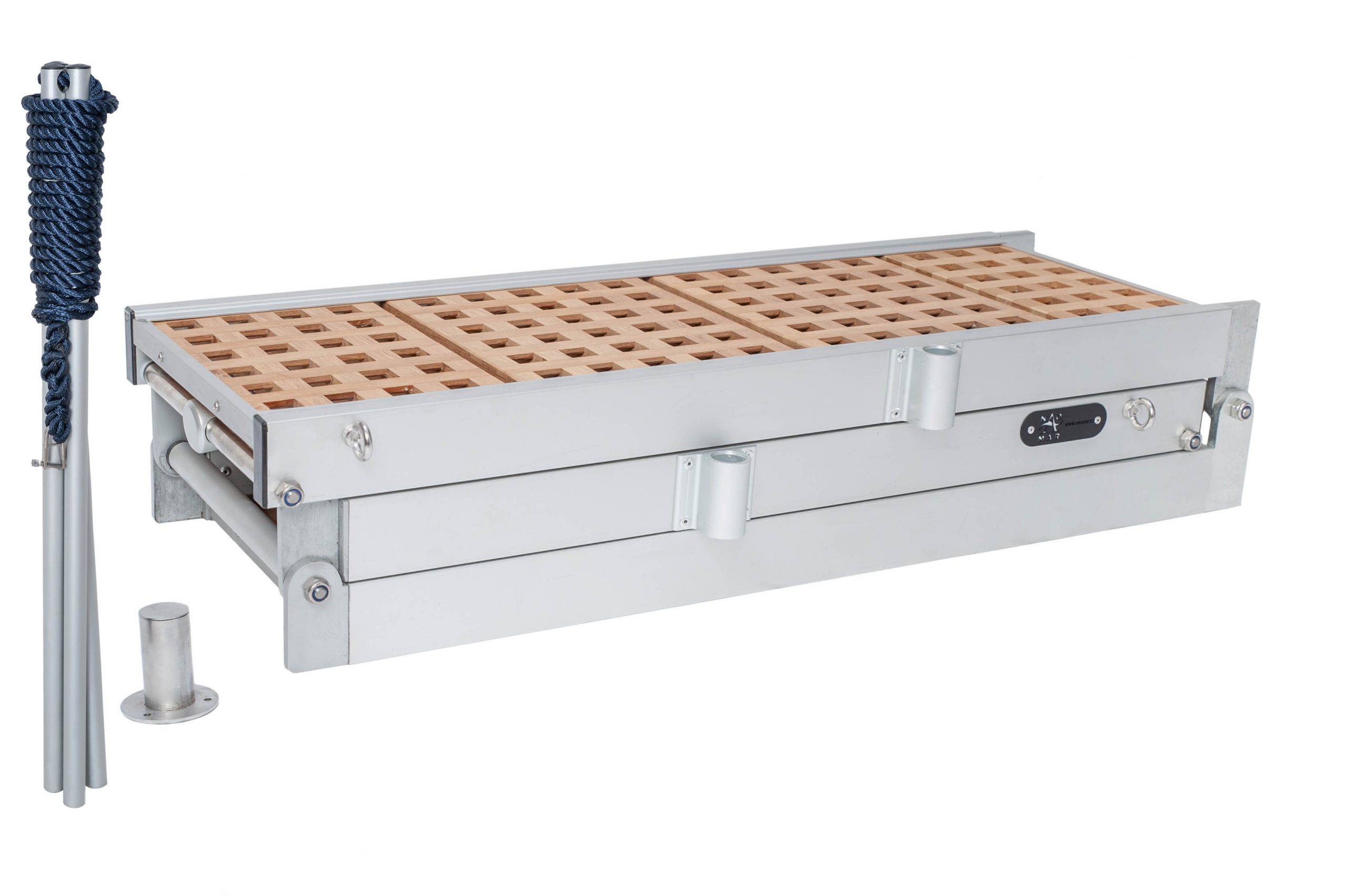

| 8063 | Light | 3 | Teak-Aluminum | 2 m | 32 cm | 13.5 kg | approximately 120 kg |
| 8064 | Light | 3 | Teak-Aluminum | 2,5 m | 32 cm | 15.5 kg | approximately 120 kg |

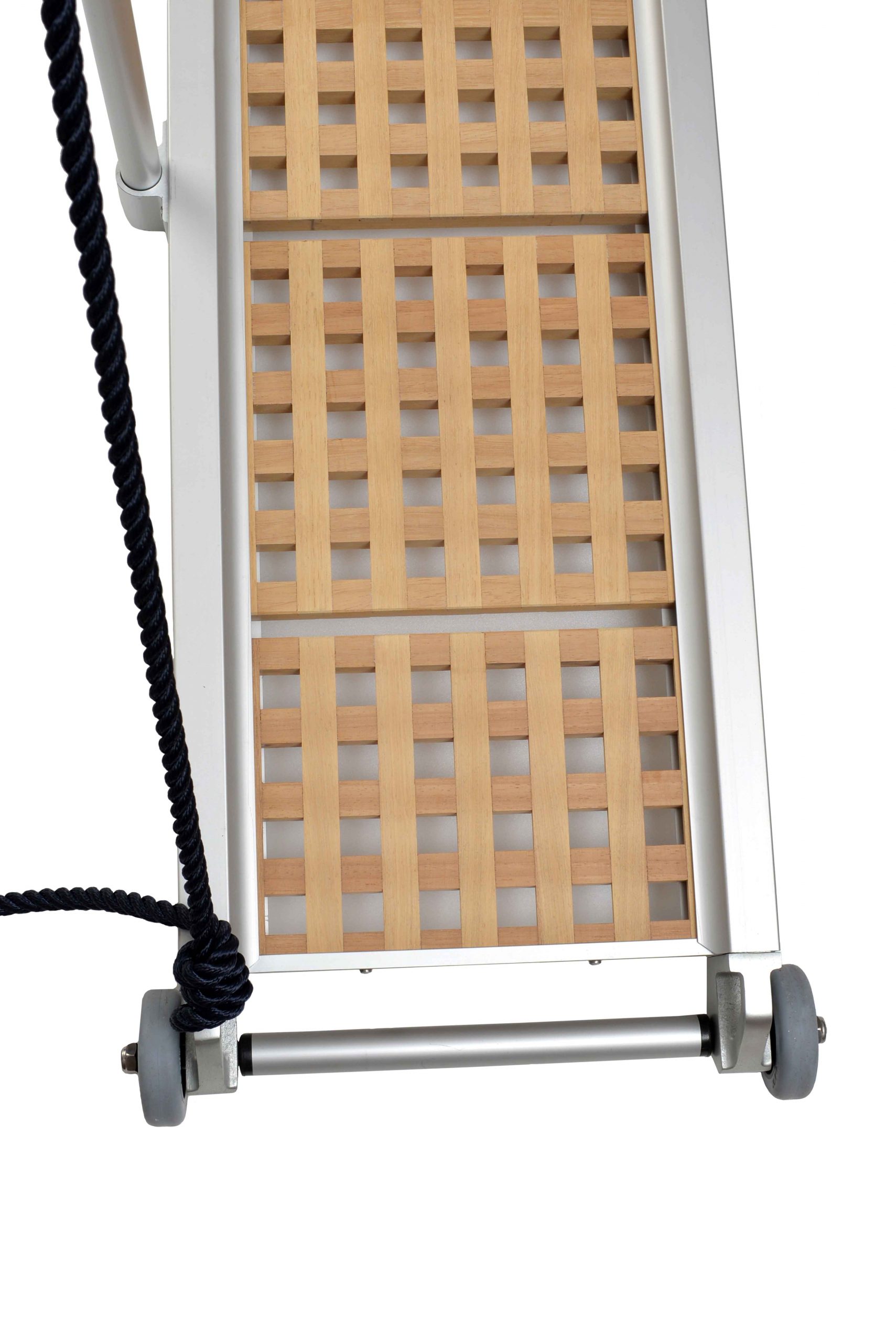

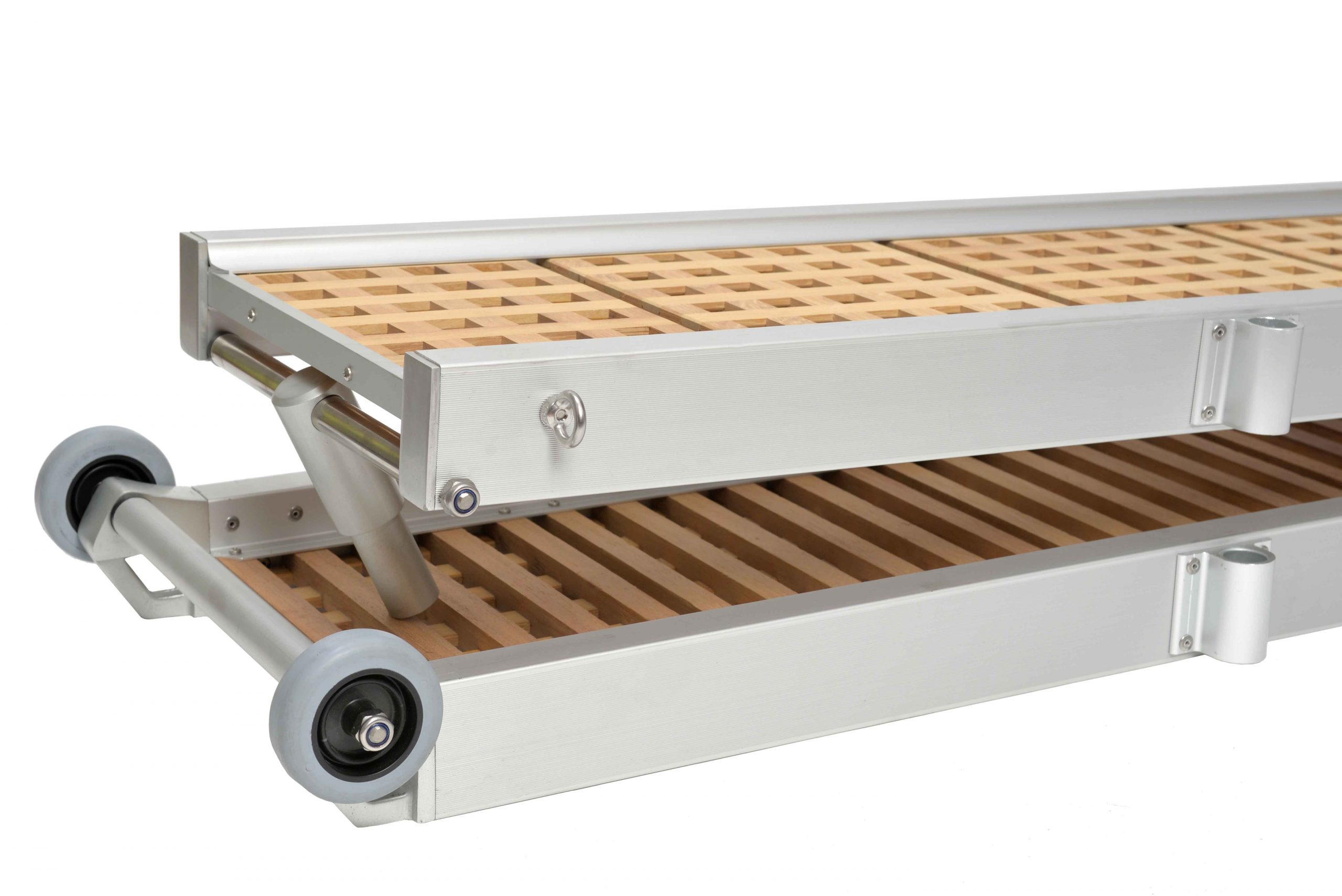

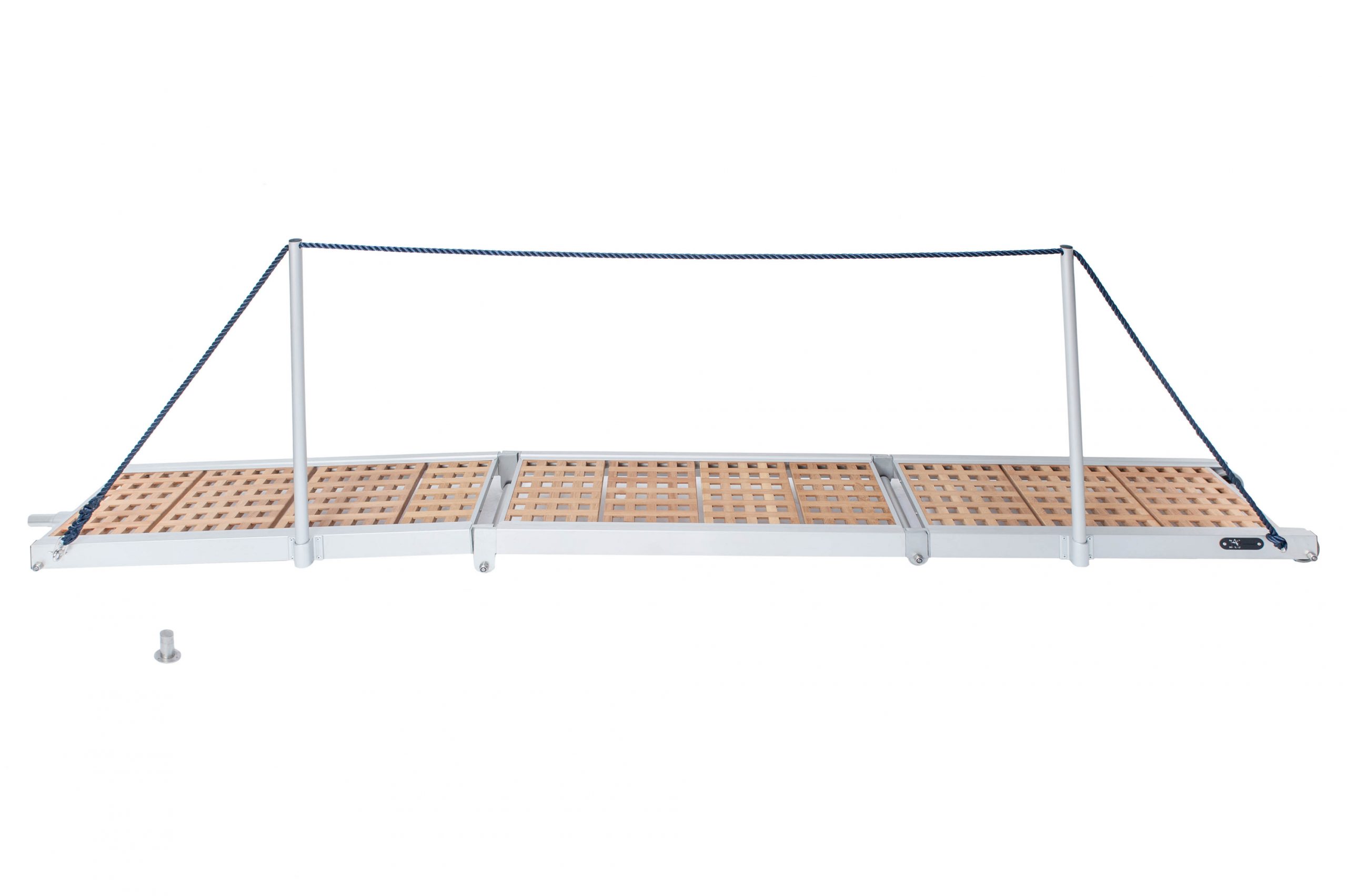

This model has a railing on the left side as seen from the quay. The Swi-TEC gangway light can be made in teak/aluminum in addition to aluminum for a more luxurious look on the vessel.

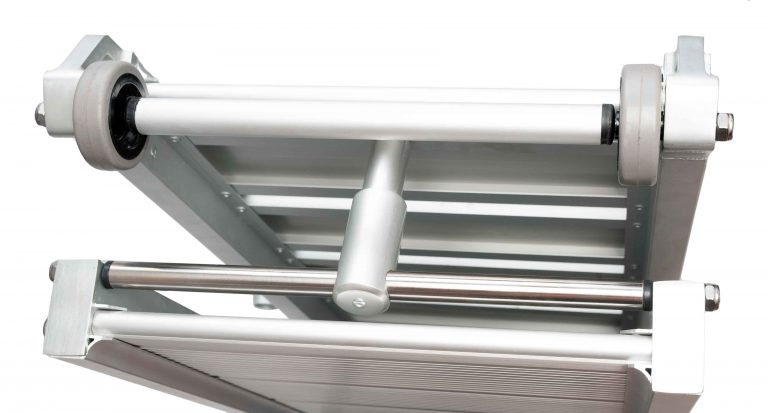

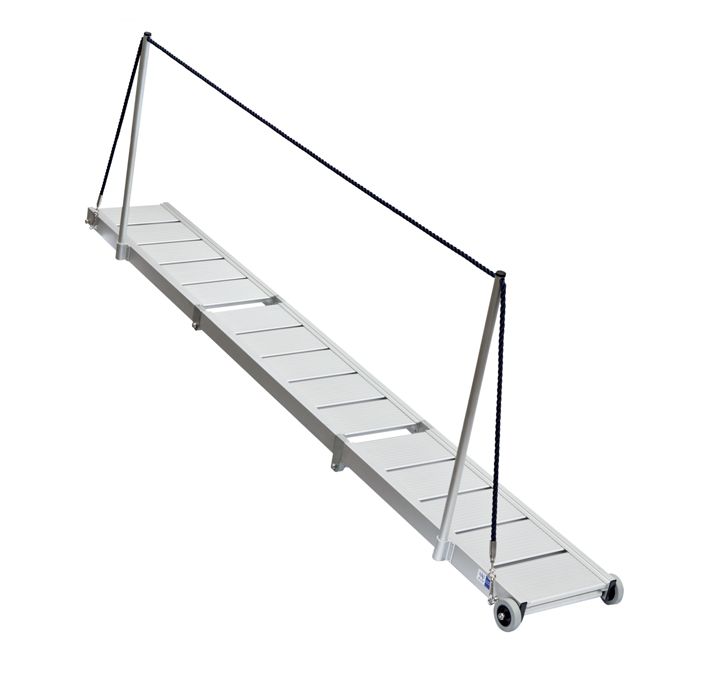

Specifications Swi-TEC running board classic
The Swi-TEC gangway classic is made of seawater-resistant aluminum and stainless steel. Suitable for larger yachts. You can choose from 2 versions in material.
- Only available in a 3-meter length, making it very suitable for larger vessels.
- Available in 2-piece and 3-piece versions
- Supplied with one cover pot as standard
| ART. NO. | share | MATERIAaL | LENGTH | width | weight | max. weight | |
|---|---|---|---|---|---|---|---|

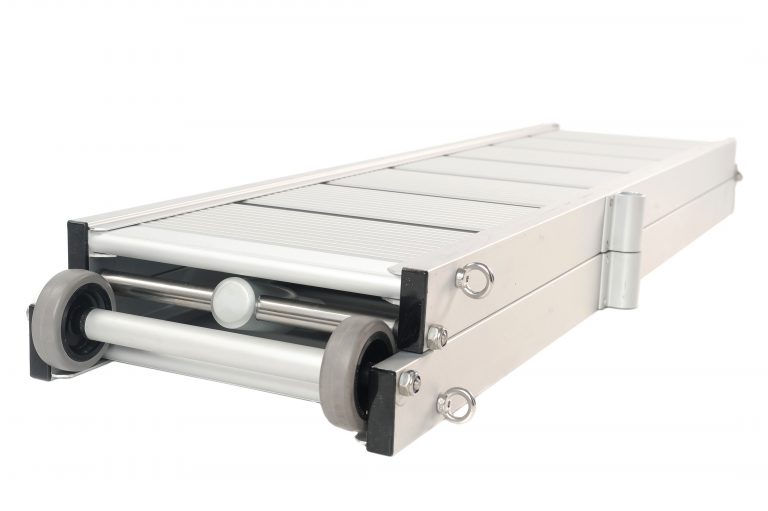

| 8047 | Classic | 2 | Aluminum | 3 m | 44 cm | 22 kg | approx. 150 kg |
| 8053 | Classic | 2 | Teak-Aluminum | 3 m | 34 cm | 25 kg | approx. 150 kg |

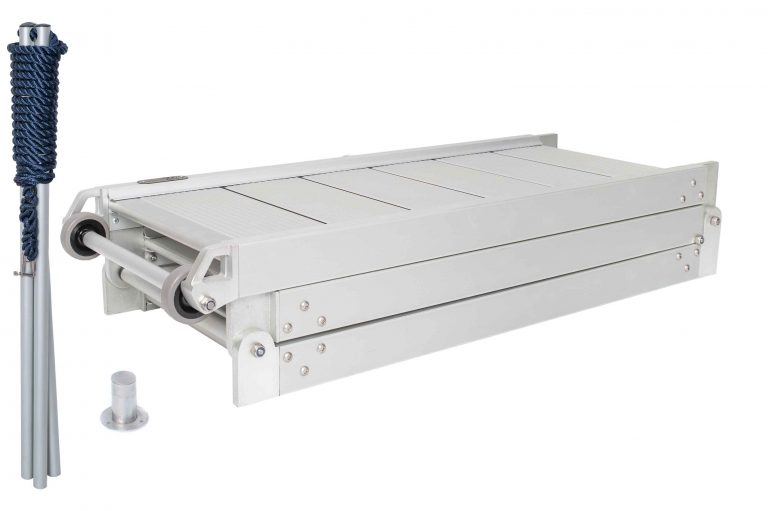

| 8066 | Classic | 3 | Aluminum | 3 m | 44 cm | 22 kg | approx. 150 kg |

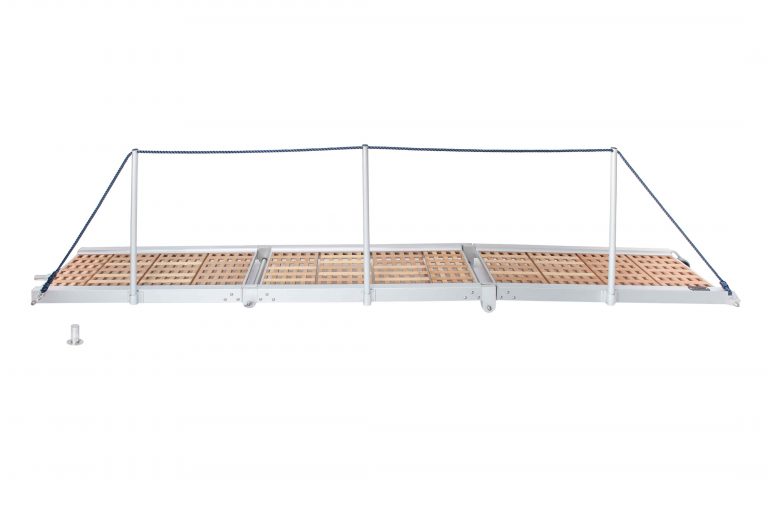

| 8065 | Classic | 3 | Teak-Aluminum | 3 m | 34 cm | 25 kg | approx. 150 kg |
This model has a railing on the left side as seen from the quay. The Swi-TEC gangway light can be made in teak/aluminum in addition to aluminum for a more luxurious look on the vessel.
PLEASE NOTE: We supply the Swi-TEC running boards only to order. The running boards cannot be returned!
Additional information
| Type | Mini, Light, Classic |
|---|---|
| Type | 2 piece, 3 piece |
| Material | Aluminum, Teak-Aluminum |
| Length | 2 meters, 2.5 meters, 3 meters |
