Sub FlowSafe float

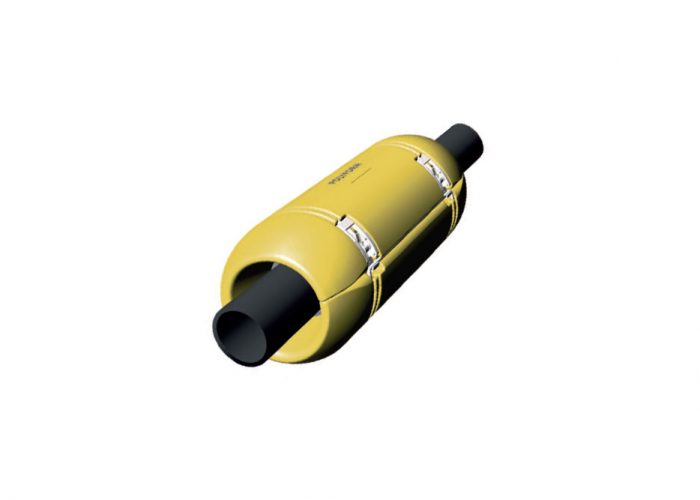

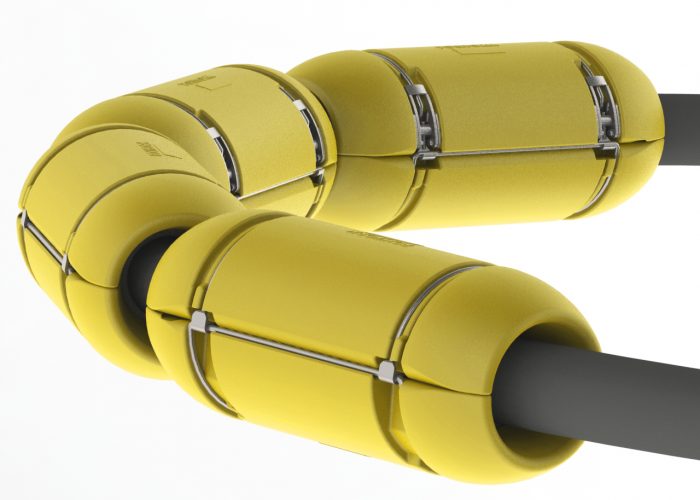

The Polyform Sub Flowsafe is a float for cables and hoses specifically designed for use at depth. The Sub FlowSafe is made of a rotationally molded PE outer shell and filled with polyurethane (PUR) foam, ensuring a compressive strength of 500 mH2O.

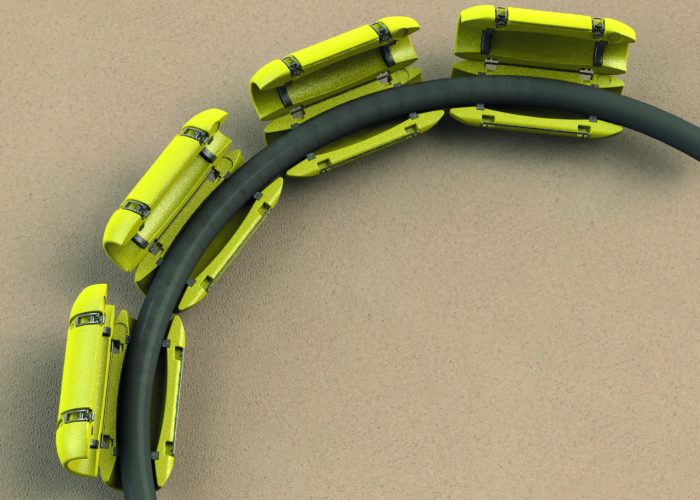

The Sub FlowSafe floats feature a unique stainless steel hinge and clamp. The hinge is designed to prevent piercing the outer PE shell of the device; no screws are used. All steel parts are placed within the outer diameter of the entire float to protect the locking mechanism. Synthetic rubber gaskets hold the Sub Flowsafe in place. The gaskets are available in various sizes to match cable diameters.
| Type | Length | Diameter | Inner Diameter | Weight | Volume | Max working depth | Buoyancy at -500m |
|---|---|---|---|---|---|---|---|
| Hose OD37 | 480 mm | 200 mm | 37 mm | 5.5 kg | 9,13 L | -500m | 3.5 kg |
| Hose OD80 | 480 mm | 200 mm | 79-82 mm | 5.5 kg | 9,13 L | -500m | 3.5 kg |
| Hose OD95 | 480 mm | 200 mm | 93-96 mm | 5.5 kg | 9,13 L | -500m | 3.5 kg |
Additional information
| Color | Yellow |
|---|---|
| Type | Hose OD37, Hose OD80, Hose OD95 |
