Polyform APB modular buoy

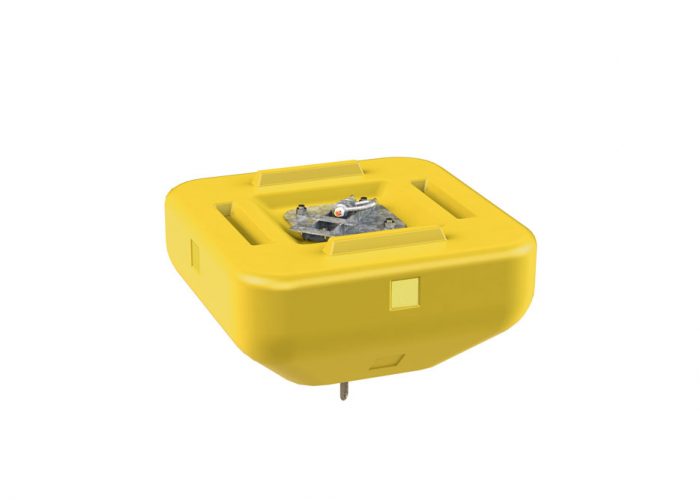

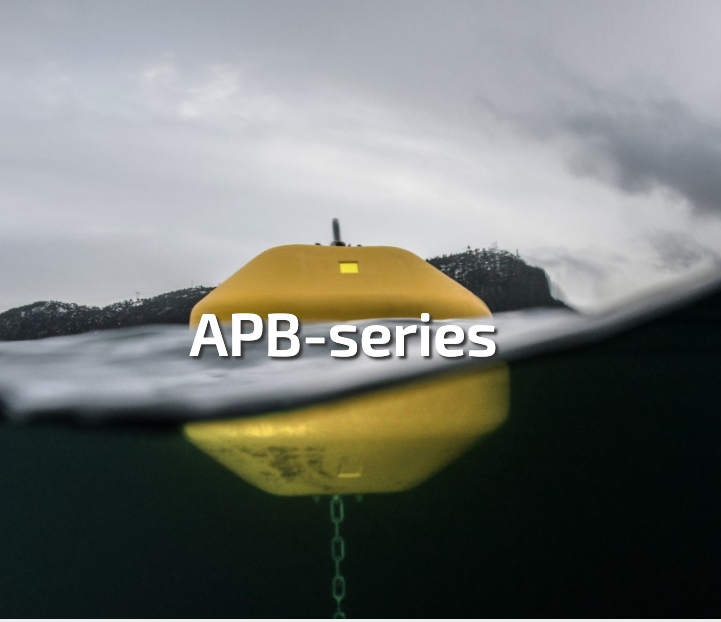

The Polyform APB modular buoy is great for both underwater, and surface use. APB buoys are made of polyethylene and are filled with polystyrene foam (EPS) or polyurethane foam (PUR), depending on the application. Because of the filling with PUR foam, it makes this buoy also very suitable for the
offshore

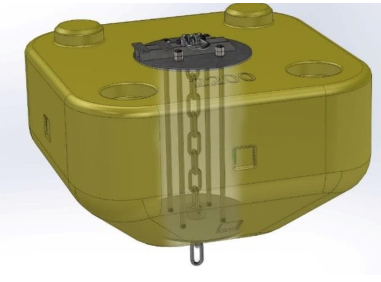

. The buoys are equipped with hot-dipped galvanized anchors, 4 full-length hot-dipped galvanized steel bolts, and a continuous chain through the middle.
By combining multiple modules, a buoyancy of +10,000 kg is achievable.
The steel fittings and chain may vary based on the application for which the buoy is used.

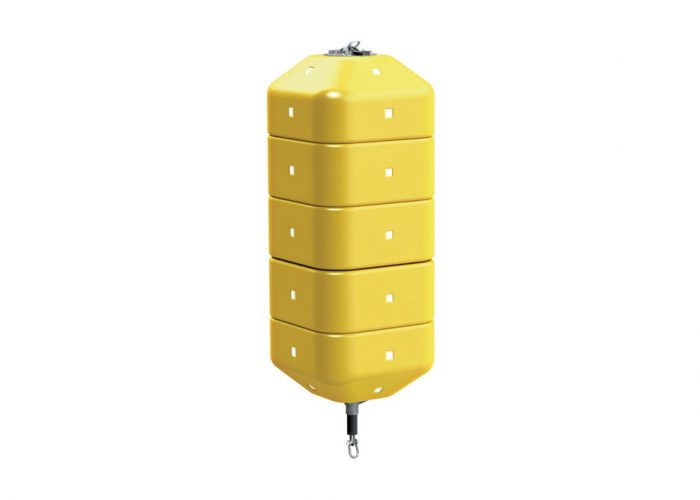

APB buoys are designed to form a modular system. Individual modules can be added or removed as needed to meet the desired buoyancy requirements.

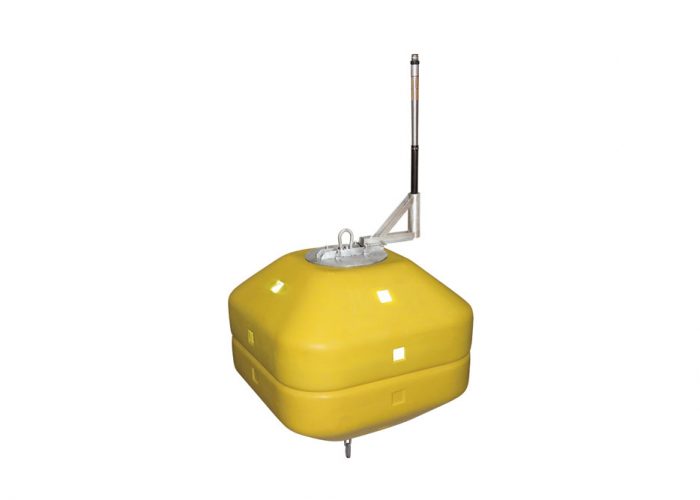

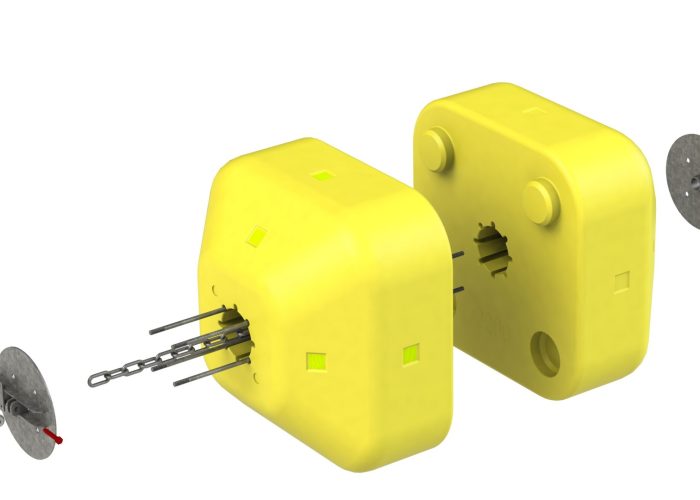

In addition to the continuous chain through the middle, the shackles are secured with 4 hot-dipped galvanized steel bolts along their entire length. The buoys feature an integrated pipe as part of the upper module, allowing easy mounting of lights and various other fixtures.
The Polyform APB modular buoy for different applications

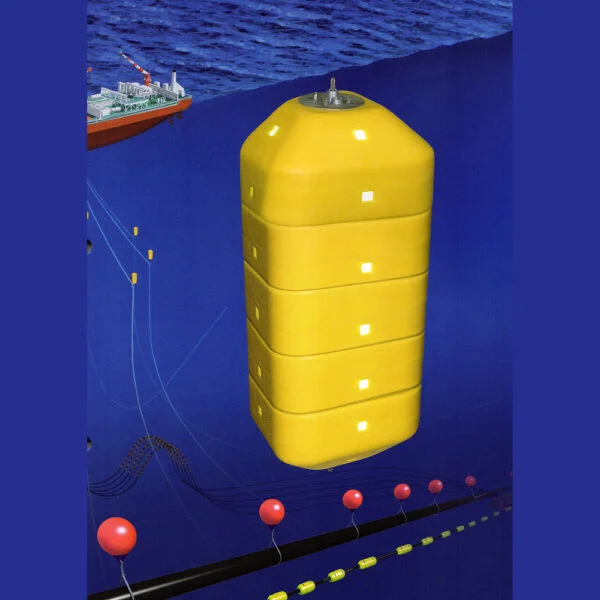

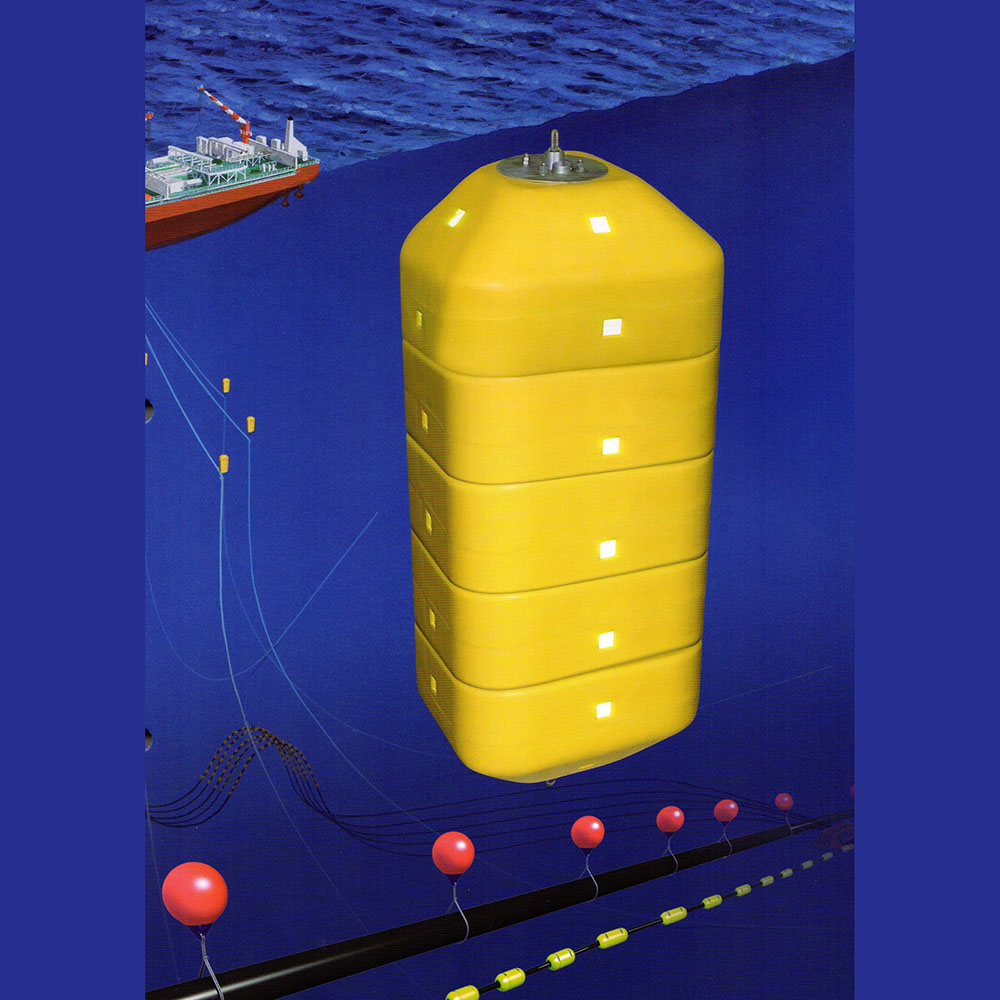

APB buoys are produced with steel anchors for offshore applications, filled with polystyrene foam (EPS), polyurethane foam (PUR) or other types of foam, depending on the application. In addition, APB buoys are provided with reflective tape on four sides of the buoy.
Product certificate: meets in strength and safety the requirements of Norwegian Marine Fish farms NS 9415
The Polyform APB modular buoy is highly applicable in:
| Type | Weight | Net buoyancy | Length | Width | Product sheet |
|---|---|---|---|---|---|
| AQUA 500 APB | 85 kg | 495 kg | 72 cm | 117 x 117 cm | APB500 Polyform Productsheet |
| AQUA 1000 APB | 145 kg | 1015 kg | 139 cm | 117 x 117 cm | APB1000 Polyform Productsheet |
| AQUA 1500 APB | 255 kg | 1500 kg | 109 cm | 180 x 180 cm | APB1500 Polyform Productsheet |
| AQUA 2200 APB | 280 kg | 2200 kg | 145 cm | 180 X 180 cm | APB2200 Polyform Productsheet |
| AQUA 3000 APB | 400 kg | 3000 kg | 194 cm | 180 x 180 cm | APB3000 Polyform Productsheet |
| AQUA 4400 APB | 590 kg | 4400 kg | 245 cm | 180 X 180 cm | APB4400 Polyform Productsheet |
| AQUA 6600 APB | 890 kg | 6400 kg | 335 cm | 180 X 180 cm | APB6600 Polyform Productsheet |
| AQUA 8000 APB | 1685 kg | 8215 kg | 529 cm | 180 X 180 cm | APB8000 Polyform Productsheet |
| AQUA 10000 APB | 1975 kg | 10325 kg | 529 cm | 180 x 180 cm | APB10000 Polyform Productsheet |
Additional information
| Brand | Polyform |
|---|---|
| Kleur | yellow |
| Types | APB 0500, APB 1000, APB 10000, APB 1500, APB 2200, APB 3000, APB 4400, APB 6600, APB 8000 |
